100G QSFP28 Single Lambda

LQP100-DR1 100G Optical transceiver module are designed for use in 100 Gigabit Ethernet links over 500m single mode fiber. They are operating on 1311nm wavelength, compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

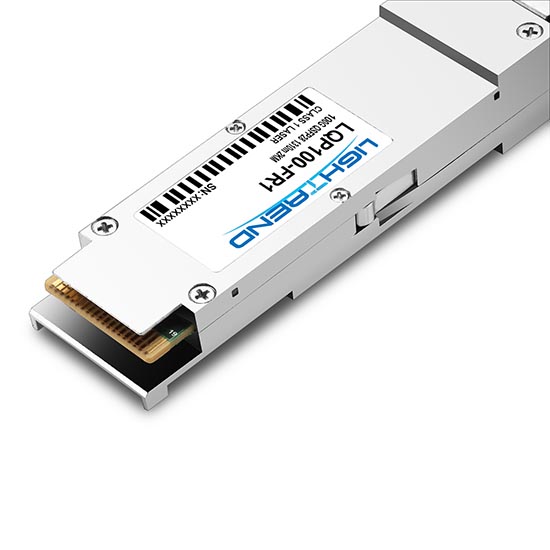

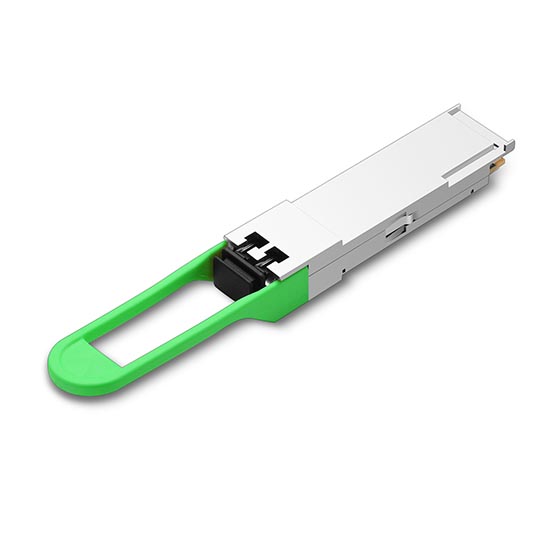

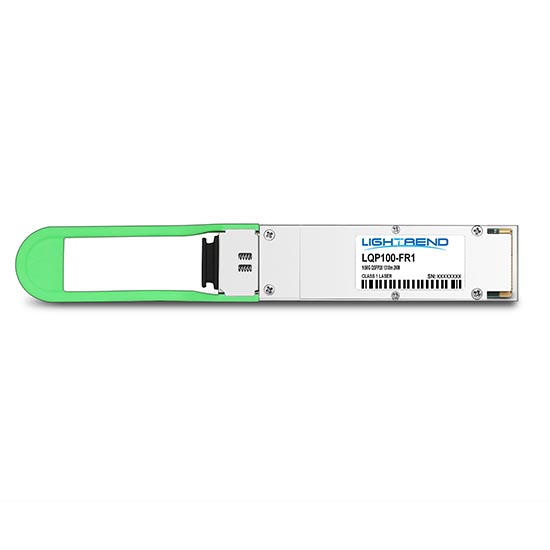

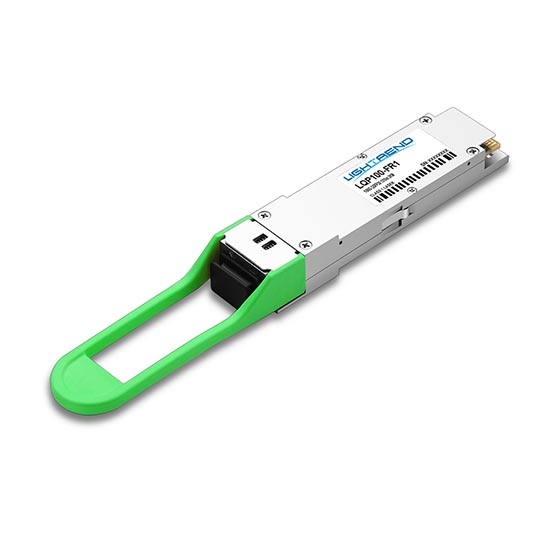

LQP100-FR1 100G Optical transceiver module are designed for use in 100 Gigabit Ethernet links over 2km single mode fiber. They are operating on 1311nm wavelength, compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.


LQP100-LR1 100G Optical transceiver module are designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. They are operating on 1311nm wavelength, compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.


LQP100-ER1 100G Optical transceiver module are designed for use in 100 Gigabit Ethernet links over 40km single mode fiber. They are operating on 1311nm wavelength, compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.


    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Download

    LQP100-DR1

    QSFP28 DR

    1x100Gbps

    1311nm

    500m

    LC


    LQP100-FR1

    QSFP28 FR

    1x100Gbps

    1311nm

    2KM

    LC


    LQP100-LR1

    QSFP28 LR

    1x100Gbps

    1311nm

    10km

    LC


    LQP100-ER1

    QSFP28 ER

    1x100Gbps

    1309.14nm

    40km

    LC



    For the latest specification and samples, please contact us [email protected]
