400G Series
400G QSFP-DD optical transceivers is available at Lightrend. The series of products comply with IEEE 802.3bs and QSFP-DD MSA standards and are mainly applied in 400G Ethernet, Data Center and Cloud Networks.

200G Series
200G QSFP-DD optical transceivers is available at Lightrend. The series of products comply with IEEE 802.3bs and QSFP-DD MSA standards and are mainly applied in 200G Ethernet, Data Center and Cloud Networks.
100G Series
Lightrend is offering 100G QSFP28 series and CFP, CFP2, CFP4 form factor transceivers, 100G single lambda, BIDI 10KM and 40KM, duplex DR1, FR1, LR1 and ER1 interfaces transceivers. The 4x25G QSFP28 transceiver portfolio is one of the broadest in the market and covers SR4, CWDM4, LR4, ER4 Lite, ER4 up to the 80km ZR4, industrial grade QSFP28 transceivers are also available. 100G QSFP28 AOC and DAC are included in the family.
50G Series
Lightrend offers 50G transceivers for both Ethernet and mobile networks. The QSFP28 form-factor is used to mobile applications and for longer reaches with distance 10KM to 40KM.
40G Series
Lightrend is offering 40G transceivers for with QSFP+ orm-factors. It includes SR4, LR4 and ER4, AOCs and DACs are avalilable to reach short connectivity inside the same chassisk.
25G Series
Lightrend is 25G transceivers are used in Ethernet, Fibre Channel (32G) and mobile fronthaul applications (CPRI, OBSAI). I-temp application as well as distances of up to 40km are supported as well as LAN WDM, CWDM and DWDM wavelengths.
10G Series
Lightrend is 10G family incudes SFP+, XFP form factors, duplixed SR, LR, ER, ZR, CWDM, fixed DWDM, tunable DWDM, and sigle mode BIDI series are all available, distance up to 80KM; 10G Copper SFP+,  AOC and DAC in the family.
<10G Series
Lightrend provides full series of low speed SFP for SONET, Gigabit Ethernet, Fibre Channel, and other communications standards. Most SFP transceivers are used for Gigabit Ethernet and come in a wide variety of transmitters/receivers for different distances and fiber types as well as conversion to RJ-45 (copper).
Coding Box
The CodingBox connects to a PC with Windows XP~10 32&64bit through a USB port to implement functions such as writing or reading code and DDM parameters for SFP series, XFP series, QSFP series, and QSFP-DD series optical modules. The size is 90mm*80mm*25mm,and the weight is about 135g.

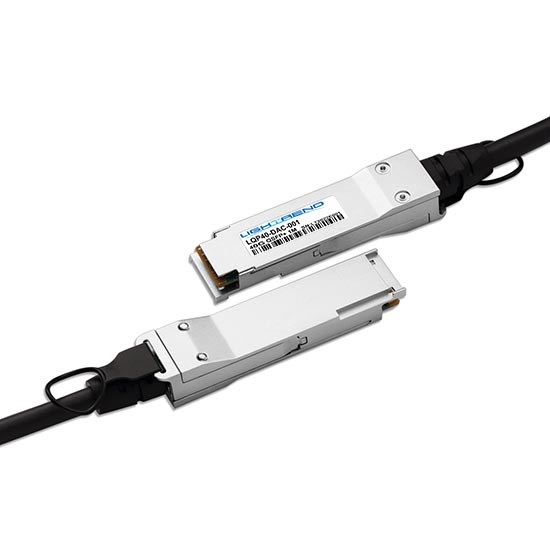

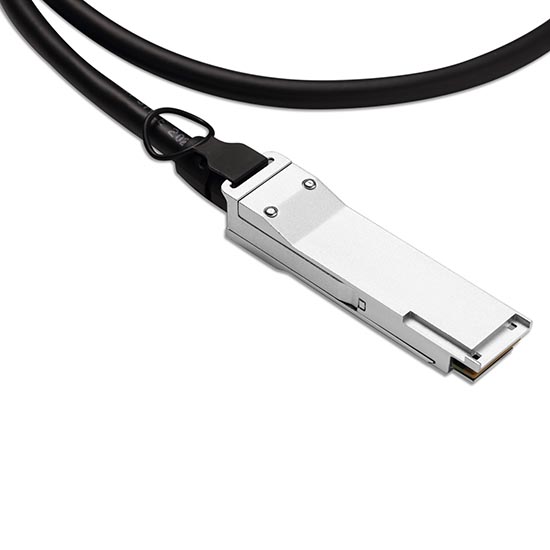

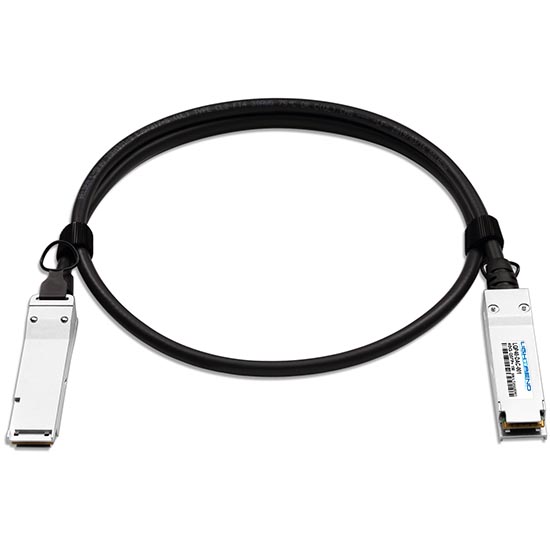

40G QSFP+ DAC

LQP40-DAC-xxx 40G Twinax DAC assemblies are high-performance, cost effective I/O solutions for 40GB Ethernet , allow devices manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget.


    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Download

    LQP40-DAC-xxx

    DAC QSFP+

    40Gbps

    N/A

    1-7m

    N/A

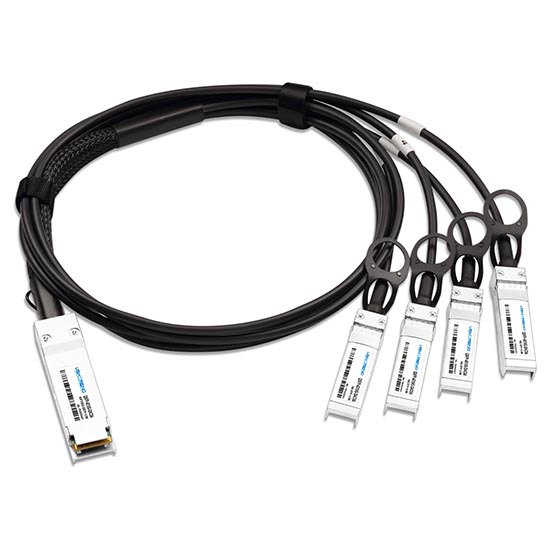

    LQP40-4XP-D-xxx

    DAC QSFP+

    40Gbps

    N/A

    1-7m

    N/A



    For the latest specification and samples, please contact us [email protected]
