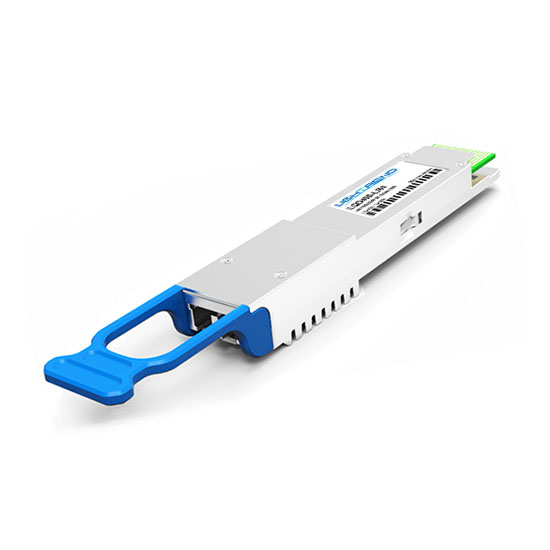

400G QSFP28-DD LR4 10KM

400G QSFP-DD transceivers have four optical lanes that operate at 100Gbps PAM4 modulation, providing solutions up to 400 Gbps. The transceivers have electrical side 8 lanes of 53.125Gbps PAM4. They are compliant with the QSFP-DD MSA. Digital diagnostics functions are available via the I2C interface, as specified by CMIS.

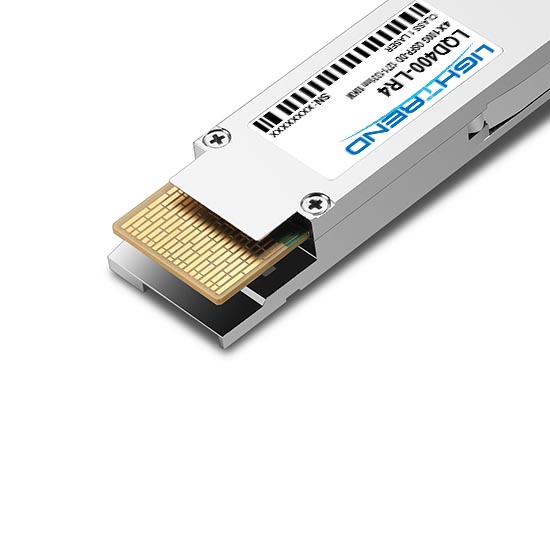

LQD400-LR4 is a QSFP-DD optical transceiver for 400G links over singlemode fiber. It is compliant with the QSFP-DD MSA specifications. It operates at 53.125Gbps per lane up to 10KM on CWDM4 wavelength.

    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Temp

    Download

    LQD400-SR8

    QSFP-DD 400G SR8

    400Gbps

    850nm

    100m(OM4)

    MPO

    C


    LQD400-DR4

    QSFP-DD 400G DR4

    400Gbps

    1310nm

    500m

    MPO

    C


    LQD400-FR4

    QSFP-DD 400G FR4

    400Gbps

    CWDM4

    2KM

    LC

    C


    LQD400-LR4

    QSFP-DD 400G LR4

    400Gbps

    CWDM4

    10KM

    LC

    C


    LQD400-ER4

    QSFP-DD 400G ER4

    400Gbps

    PAM4

    40KM

    LC

    C



    For the latest specification and samples, please contact us [email protected]
