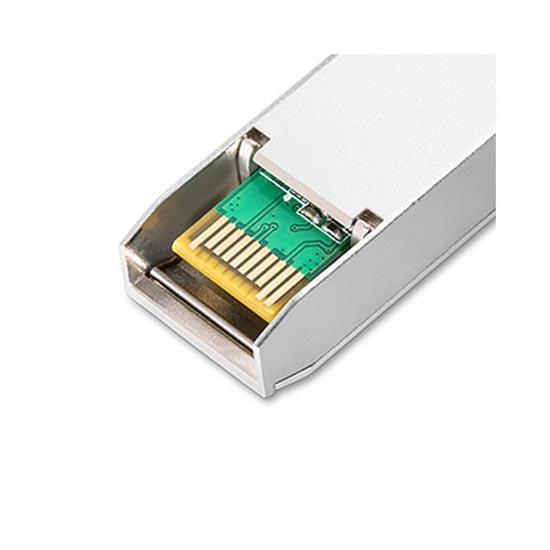

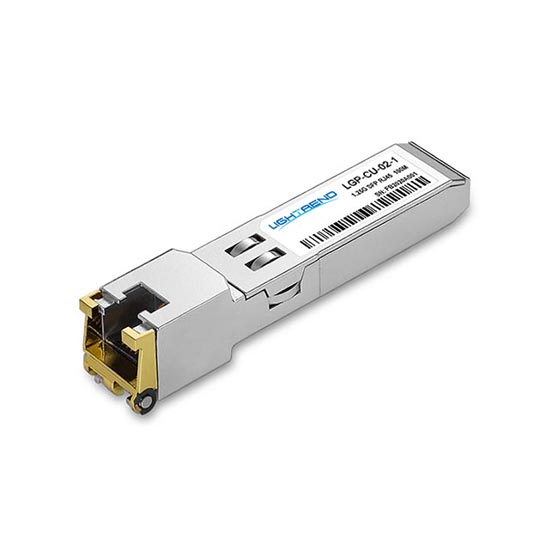

1G SFP Copper

10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

    Part No.

    Description

    Data Rate

    Host side

    Distance

    Connector

    Temp

    Download

    LGP-CU-02-1(I)

    SFP Copper

    1000 Base-T

    Serdes, support Rx_LOS

    100m

    RJ45

    C/I


    LGP-CU-02-2(I)

    SFP Copper

    1000 Base-T

    Serdes, not support Rx_LOS

    100m

    RJ45

    C/I


    LGP-CU-02-3(I)

    SFP Copper

    10/100/1000 Base-T

    SGMII, not support Rx_LOS

    100m

    RJ45

    C/I


    LGP-CU-02-4(I)

    SFP Copper

    10/100/1000 Base-T

    SGMII, support Rx_LOS

    100m

    RJ45

    C/I



    For the latest specification and samples, please contact us [email protected]
