100G QSFP28


LQP100-SR4 Optical transceiver module are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

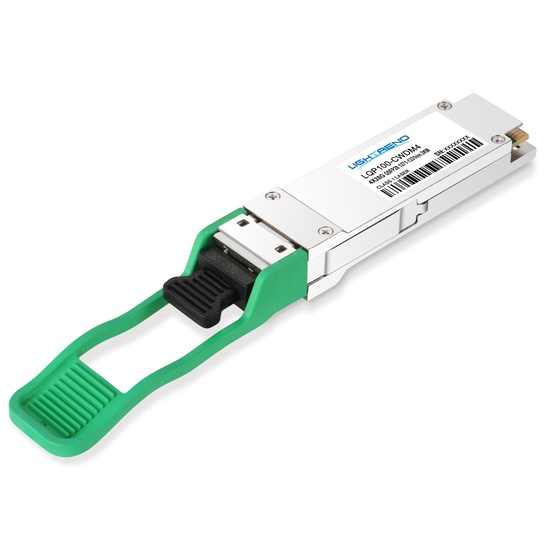

LQP100-CWDM4 transceiver module is designed for use in 100 Gigabit Ethernet links over 2km single mode fiber. They are compliant with the QSFP28 MSA, CWDM4 MSA, and portions of IEEE 802.3bm.


LQP100-LX4 transceiver module is designed to support a link length of 2KM on SMF and 100m on MMF@OM3. The 100G QSFP28 LX4 will help user update internet from 25G/10G multimode to 100G without changing cable.

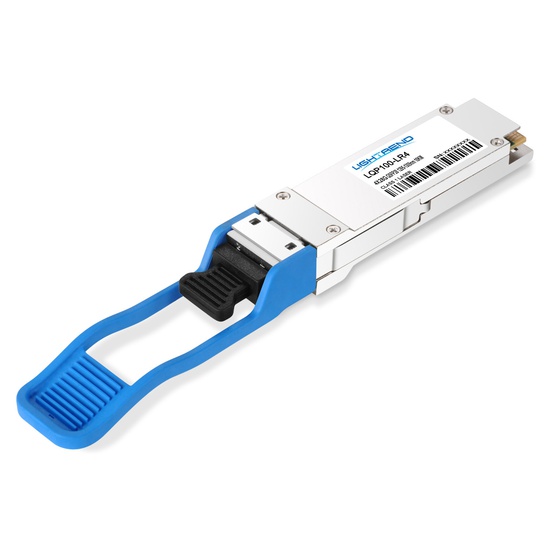

LQP100-LR4 transceiver module is designed for 103Gigabit Ethernet links over 10km single mode fiber. It is compliant with IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.


LQP100-ER4 transceiver module is designed for 100 Gigabit Ethernet links over 40km single mode fiber. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. And compliant with 100G 4WDM-40 MSA.

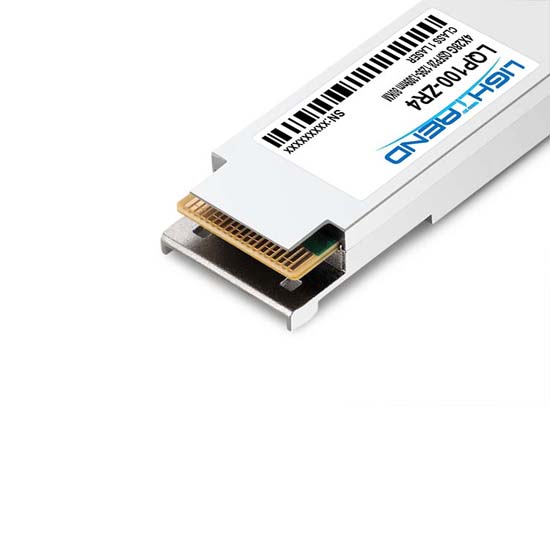

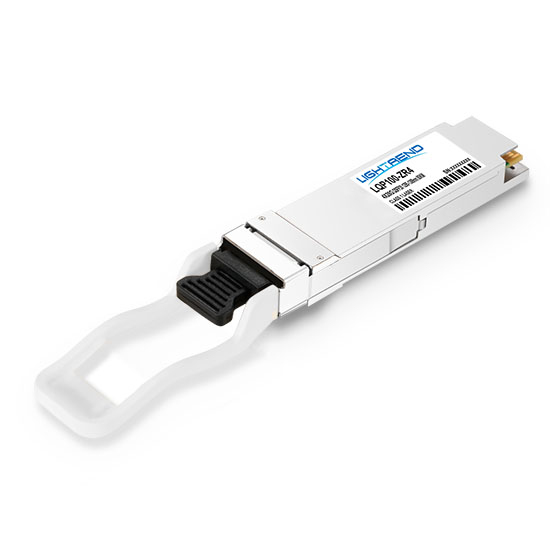

LQP100-ZR4 transceiver module is designed for 100 Gigabit Ethernet links over 80km single mode fiber. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. And compliant with 100G MSA.


LQP100-eZR4 transceiver module is designed for 100 Gigabit Ethernet links over 100km single mode fiber. It is in 100GBase-KR4 solution and reach 100KM without repeater, competitive cost, low consumption, low EMI and high sensitivity. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. And compliant with 100G MSA.

    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Temp

    Download

    LQP100-SR4

    QSFP28 SR4

    103Gbps

    850nm

    70m OM3/ 100m OM4

    MPO

    C


    LQP100-CWDM4

    QSFP28 CWDM4

    103Gbps

    CWDM4

    2KM

    LC

    C

    LQP100-PSM4

    QSFP28 PSM4

    103Gbps

    PSM4

    2KM

    MPO

    C


    LQP100-LX4

    QSFP28 LX4

    103Gbps

    CWDM4

    2KM on SMF and 100m on MMF(OM3)

    LC

    C


    LQP100-LR4(I)

    QSFP28 LR4

    103Gbps

    LAN-WDM

    10KM

    LC

    C/I


    LQP100-ER4L

    QSFP28 ER4L

    103Gbps

    LAN-WDM

    40KM*

    LC

    C


    LQP100-ER4

    QSFP28 ER4

    103Gbps

    LAN-WDM

    40KM

    LC

    C


    LQP100-ZR4

    QSFP28 ZR4

    103Gbps

    LAN-WDM

    80KM

    LC

    C


    LQP112-LR4

    QSFP28 LR4

    103/112Gbps

    LAN-WDM

    10KM

    LC

    C


    LQP112-ER4L

    QSFP28 ER4L

    103/112Gbps

    LAN-WDM

    40KM*

    LC

    C


    LQP100-eZR4

    QSFP28 ZR4

    103Gbps

    LAN-WDM

    100KM

    LC

    C


    * ER4 Lite 30km(without FEC) 40km(with FEC) optical.


    For the latest specification and samples, please contact us [email protected]
