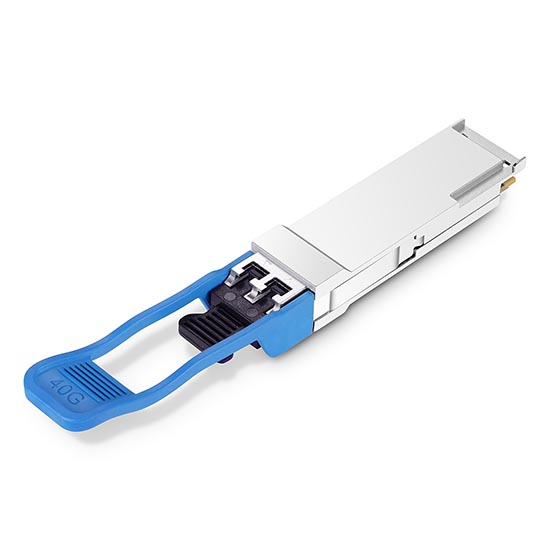

40G QSFP+

The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4 / 40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.

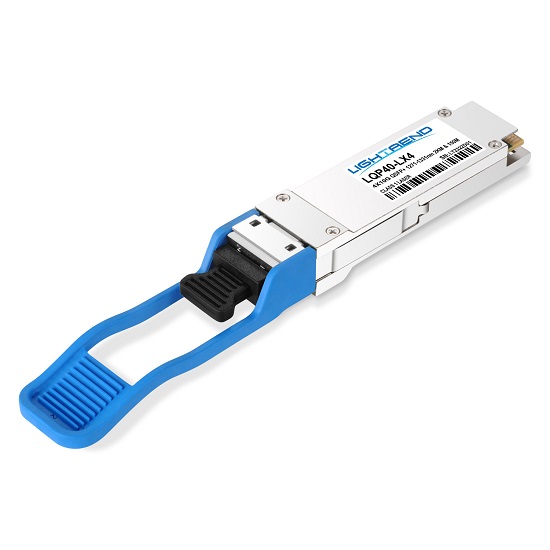

LQP40-LX4 It is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The optical interface uses an 8 or 12 fiber MTP (MPO) connector.


LQP40-SR4 It is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The optical interface uses an 8 or 12 fiber MTP (MPO) connector.

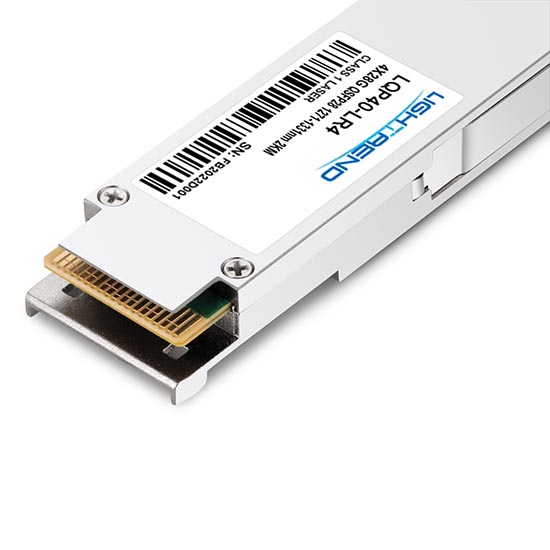

LQP40-LR4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 10km.


LQP40-ER4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.


LQP40-CSR4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.


    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Temp

    Download

    LQP40-SR4

    QSFP+ SR4

    40Gbps

    850nm

    100/150m

    MPO

    C


    LQP40-CSR4

    QSFP+ CSR4

    40Gbps

    850nm

    300/400m

    MPO

    C

    LQP40-LX4

    QSFP+ LX4

    40Gbps

    MMF/SMF: 1271nm,1291nm,1311nm,1331nm

    150m/2KM

    LC

    C

    LQP40-LR4L

    QSFP+ LR4

    40Gbps

    CWDM4

    2KM

    LC

    C


    LQP40-LR4

    QSFP+ LR4

    40Gbps

    CWDM4

    10KM

    LC

    C

    LQP40-ER4

    QSFP+ ER4

    40Gbps

    CWDM4

    40KM

    LC

    C



    For the latest specification and samples, please contact us [email protected]
