SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet, SDH/SONET and Mulirate SFP+ transeivers. Distance up to 100KM
Part No. |
Description |
Data Rate |
Wavelength |
Distance |
Connector |
Temp |
Download |
LXP-M85-02D(I) |
SFP+ SR |
9.95~11.1Gbps |
850nm |
<300m |
LC |
C/I |
|
LXP-M31-02D |
SFP+ LRM |
9.95~11.1Gbps |
1310nm |
<220m |
LC |
C |
|
LXP-L31-02D(I) |
SFP+ LR |
9.95~11.1Gbps |
1310nm |
2KM |
LC |
C/I |
|
LXP-L31-10D(I) |
SFP+ LR |
9.95~11.1Gbps |
1310nm |
10KM |
LC |
C/I |
|
LXP-L31-40D(I) |
SFP+ ER |
9.95~11.1Gbps |
1310nm |
40KM |
LC |
C/I |
|
LXP-H55-40D(I) |
SFP+ ER |
9.95~11.1Gbps |
1550nm |
40KM |
LC |
C/I |
|

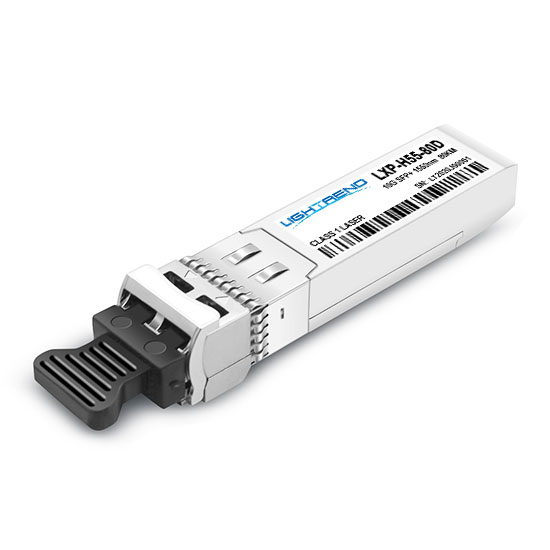

LXP-H55-80D(I) |
SFP+ ZR |
9.95~11.1Gbps |
1550nm |
80KM |
LC |
C/I |
|
For the latest specification and samples, please contact us [email protected]
