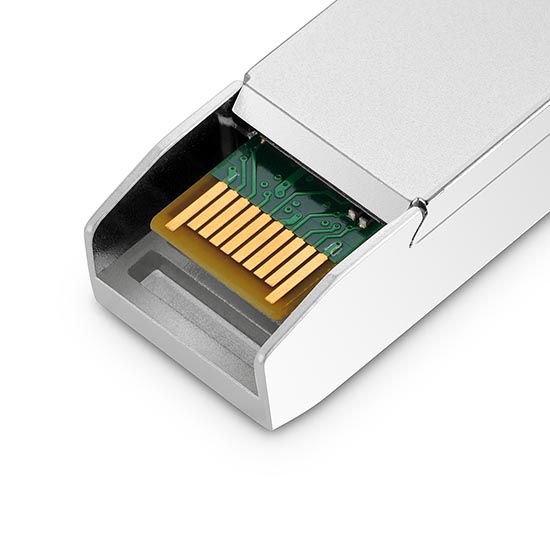

155M SFP

OC-3/STM-1 is a network line with transmission speeds of up to 155.52 Mbit/s (payload: 148.608 Mbit/s; overhead: 6.912 Mbit/s, including path overhead) using fiber optics. Depending on the system OC-3 is also known as STS-3 (electrical level) and STM-1 (SDH). These modules are also used for Fast Ethernet application.


    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Download

    LEP-S31-02D

    SFP FE/STM1/OC3

    155M

    1310nm

    2KM

    LC


    LEP-L31-10D

    SFP FE/STM1/OC3

    155M

    1310nm

    10KM

    LC


    LEP-H31-40D

    SFP FE/STM1/OC3

    155M

    1310nm

    40KM

    LC

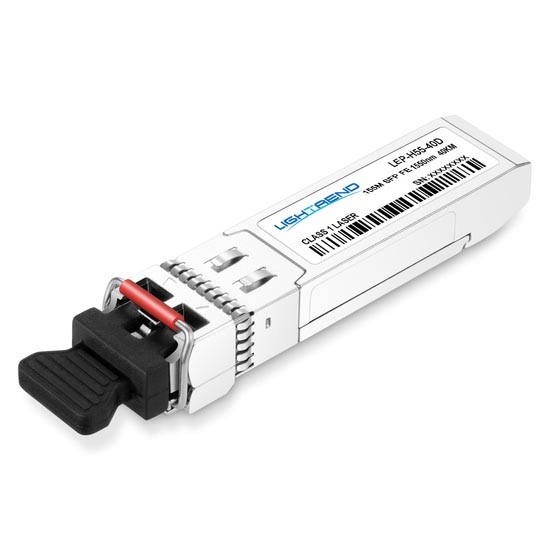

    LEP-H55-40D

    SFP FE/STM1/OC3

    155M

    1550nm

    40KM

    LC


    LEP-H55-80D

    SFP FE/STM1/OC3

    155M

    1550nm

    80KM

    LC


    LEP-B3155-10D

    SFP FE/STM1/OC3 BIDI

    155M

    1310/1550nm

    10KM

    LC


    LEP-B5531-10D

    SFP FE/STM1/OC3 BIDI

    155M

    1550/1310nm

    10KM

    LC


    LEP-B3155-20D

    SFP FE/STM1/OC3 BIDI

    155M

    1310/1550nm

    20KM

    LC


    LEP-B5531-20D

    SFP FE/STM1/OC3 BIDI

    155M

    1550/1310nm

    20KM

    LC


    LEP-B3155-40D

    SFP FE/STM1/OC3 BIDI

    155M

    1310/1550nm

    40KM

    LC


    LEP-B5531-40D

    SFP FE/STM1/OC3 BIDI

    155M

    1550/1310nm

    40KM

    LC



    For the latest specification and samples, please contact us [email protected]
