400G 系列
400G QSFP-DD optical transceivers is available at Lightrend. The series of products comply with IEEE 802.3bs and QSFP-DD MSA standards and are mainly applied in 400G Ethernet, Data Center and Cloud Networks.
200G 系列
200G QSFP-DD optical transceivers is available at Lightrend. The series of products comply with IEEE 802.3bs and QSFP-DD MSA standards and are mainly applied in 200G Ethernet, Data Center and Cloud Networks
100G 系列
Lightrend is offering 100G QSFP28 series and CFP, CFP2, CFP4 form factor transceivers, 100G single lambda, BIDI 10KM and 40KM, duplex DR1, FR1, LR1 and ER1 interfaces transceivers. The 4x25G QSFP28 transceiver portfolio is one of the broadest in the market and covers SR4, CWDM4, LR4, ER4 Lite, ER4 up to the 80km ZR4, industrial grade QSFP28 transceivers are also available. 100G QSFP28 AOC and DAC are included in the family.
50G 系列
Lightrend offers 50G transceivers for both Ethernet and mobile networks. The QSFP28 form-factor is used to mobile applications and for longer reaches with distance 10KM to 40KM
40G 系列
Lightrend is offering 40G transceivers for with QSFP+ orm-factors. It includes SR4, LR4 and ER4, AOCs and DACs are avalilable to reach short connectivity inside the same chassisk.
25G 系列
Lightrend is 25G transceivers are used in Ethernet, Fibre Channel (32G) and mobile fronthaul applications (CPRI, OBSAI). I-temp application as well as distances of up to 40km are supported as well as LAN WDM, CWDM and DWDM wavelengths.
10G 系列
Lightrend is 10G family incudes SFP+, XFP form factors, duplixed SR, LR, ER, ZR, CWDM, fixed DWDM, tunable DWDM, and sigle mode BIDI series are all available, distance up to 80KM; 10G Copper SFP+, AOC and DAC in the family.
<10G 系列
Lightrend provides full series of low speed SFP for SONET, Gigabit Ethernet, Fibre Channel, and other communications standards. Most SFP transceivers are used for Gigabit Ethernet and come in a wide variety of transmitters/receivers for different distances and fiber types as well as conversion to RJ-45 (copper).
Coding Box
The CodingBox connects to a PC with Windows XP~10 32&64bit through a USB port to implement functions such as writing or reading code and DDM parameters for SFP series, XFP series, QSFP series, and QSFP-DD series optical modules. The size is 90mm*80mm*25mm,and the weight is about 135g.

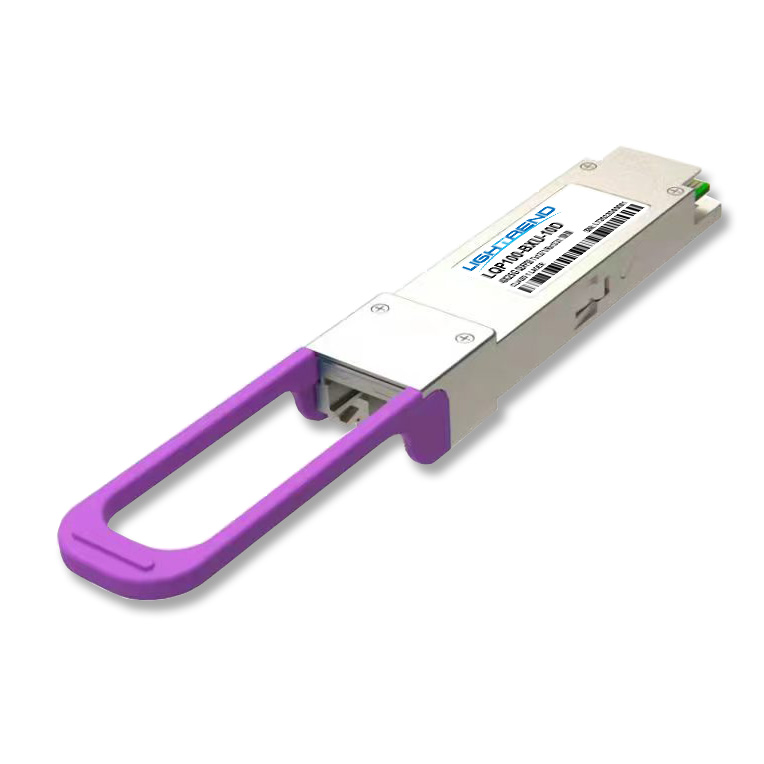

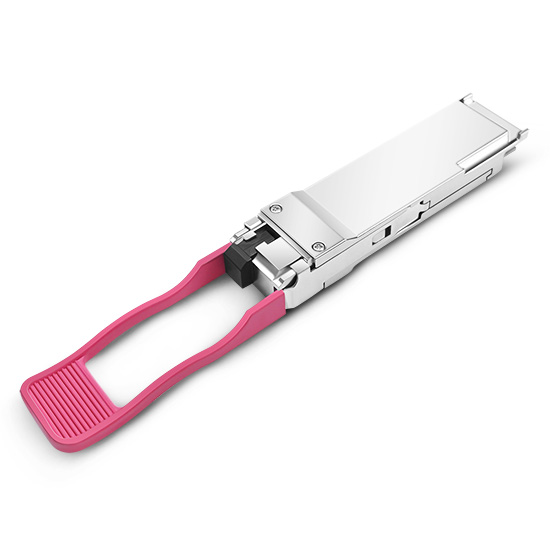

100G QSFP28 BIDI 10KM/40KM

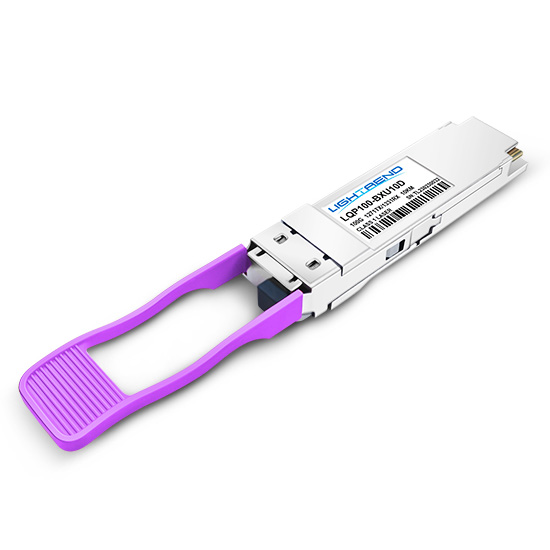

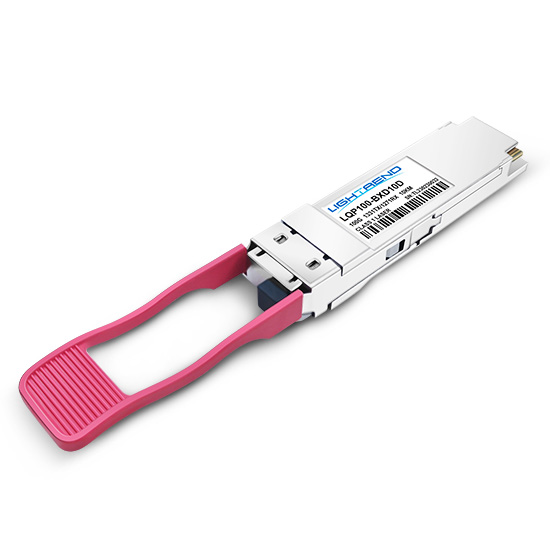

LQP100-BXU10D/LQP100-BXD10D 100G single fiber optical transceiver module are designed for operating on 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporates one channel optical signal on 1271nm and 1331nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.


LQP100-BXU40D/LQP100-BXD40D 100G single fiber optical transceiver module are designed for operating on 100 Gigabit Ethernet links over 40km single mode fiber. The module incorporates one channel optical signal on 1304nm and 1309nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.


    Part No.

    Description

    Data Rate

    Wavelength

    Distance

    Connector

    Download

    LQP100-BXU10D

    BIDI QSFP28 100G LR

    1x100Gbps

    1271nm/1331nm

    10KM

    LC


    LQP100-BXD10D

    BIDI QSFP28 100G LR

    1x100Gbps

    1331nm/1271nm

    10KM

    LC


    LQP100-BXU40D

    BIDI QSFP28 100G ER

    1x100Gbps

    1304.58nm/1309.14nm

    40KM

    LC


    LQP100-BXD40D

    BIDI QSFP28 100G ER

    1x100Gbps

    1309.14nm/1304.58nm

    40KM

    LC



    For the latest specification and samples, please contact us [email protected]
